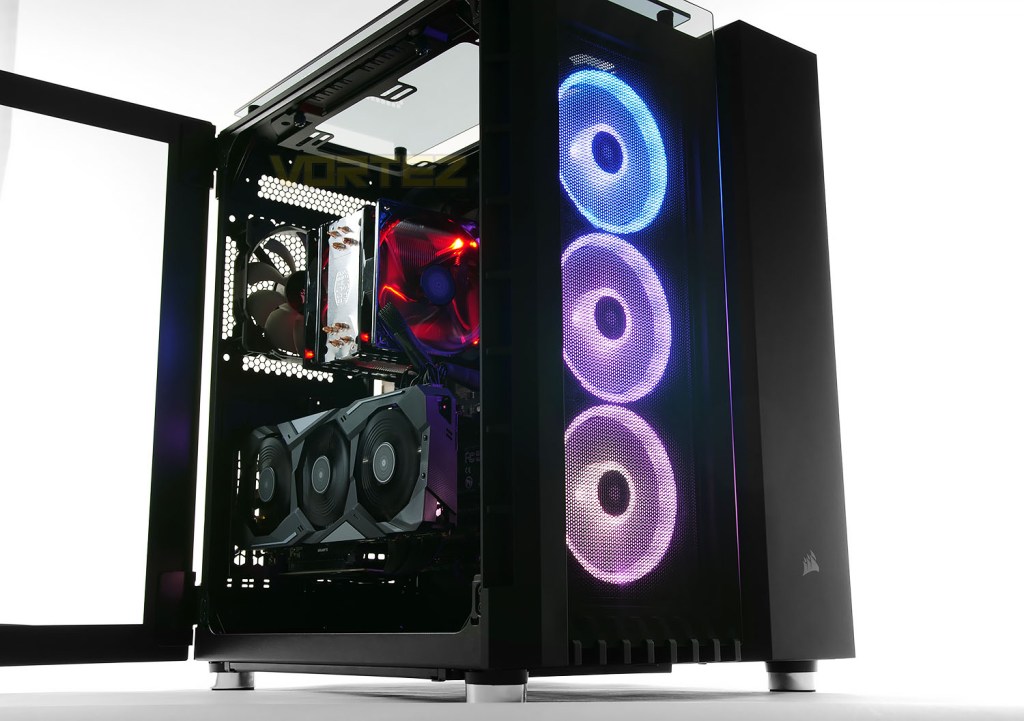

PC cases are something you don’t change very often. Usually once in awhile when you buy a new motherboard and CPU, but in my case(!) I wanted to just upgrade. My previous case was purchased due to what was available at my local Fry’s Electronics at the time and I wasn’t impressed with the Thermaltake View 31 much. It didn’t have a PSU shroud so all the ugly cables were just visible and all the rear cable management was displayed behind glass…which was odd. It also had flimsy thumb screws and the panels were a pain to put back on. My front USB ports were going out and it didn’t support USB 3.1 Thunderbolt. I was just tired of looking at the thing despite the space it had.

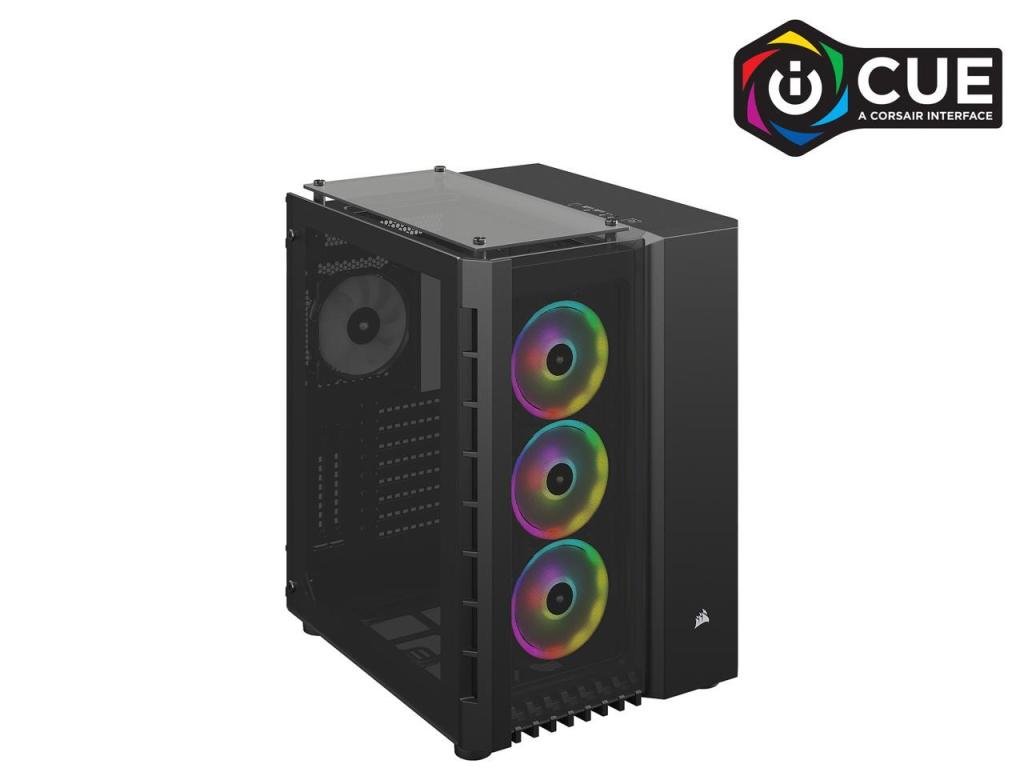

So, while switching to all Corsair RGB components, I decided to switch to a Corsair case. The only “smart” thing about the case is that it includes three LL120 fans and a Commander Pro which was not in the description anywhere! I had no idea it included this and it was a huge surprise. Corsair RGB fans are a pain to cable manage. Each fan has a PWM cable and an RGB cable. You then have to connect it to a Lighting Node Pro which controls the fans. Then you have to connect the LED hub to the Node Pro. The lighting hub then connects to the internal USB and the Node Pro connects to the internal SATA power. It’s a huge pain, but the fan hub eliminates needing that LED hub.
The case itself was easy to build in. The case comes with pre-installed stand-offs and the motherboard went in with no issue. The side glass panel is magnetically held closed and then a single screw allows you to lift it off its hinge. The back panel is a solid sheet of aluminum with a filter for the PSU. The top glass is raised on rubber stand-offs and you can insert an optional filter if you have a 240mm radiator you are installing on top. The rear has a slide out filter panel and so does the front. I love how the PSU is side mounted in the back and I had plenty of room for all the cables and there were plenty of tie offs and rubber slots in the back. The case also has a 3.5″ and 2.5″ drive cage. I chose to remove the 3.5″ cage and the 2.5″ cage has four toolless slots that can be snapped apart. I then just screwed this back in to free up some room.
The case has an option to side mount your GPU, but it’s pretty close to the glass and these mounts are typically not recommended for high-end cards that get hot. My RTX 2080 barely fit in here as the GPU clearance is only 330mm and my card was 327mm, but MSI cards are usually on the larger side. The pointy end of the GPU shroud is mere millimeters away from a fan so it was a tight fit. You could do a SLI setup in here, but it would be super tight. The case comes with four thermal sensor cables which I chose not to use, at least not for now. It also came with four PWM fan cable extensions. The usual front panel cables were present, but I never plug in the front audio as most of these cables aren’t shielded properly and you get interference and I just never use it. What is nice is that the front USB is 3.0 only, but there are only two which is limiting, but most PCs have plenty of USB parts on the rear. I only use it for my mouse dongle and a USB stick or phone.

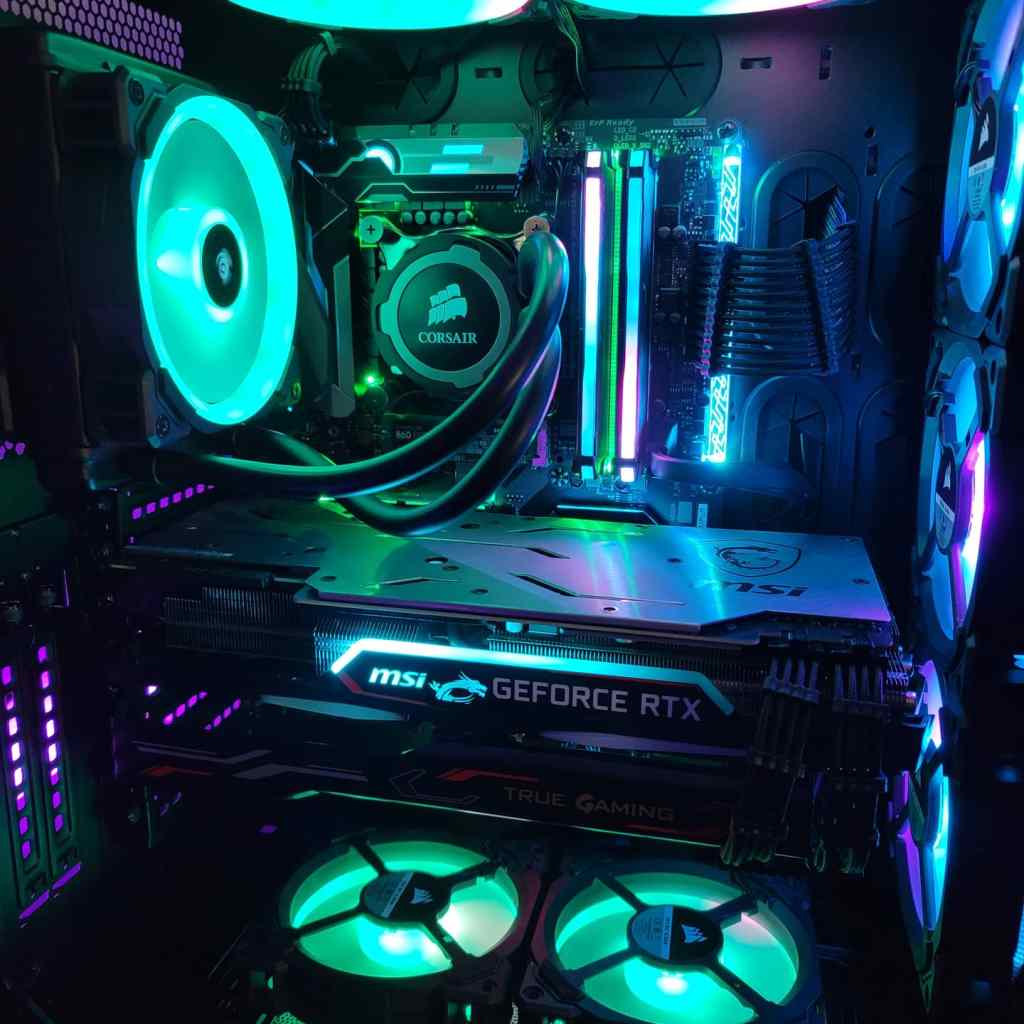

When it comes to aesthetics the case is gorgeous. The soft aluminum accompanied by glass and that top raised panel is beautiful. It’s not the best when it comes to fan noise or even temps, probably mid-tier, but it’s good enough for most gamers. I wouldn’t recommend a SLI 3090 setup in here, but with a single card and a liquid cooled CPU you’re going to be able to drop your fan fairly low. At idle my RTX 2080 stays at a cool 32c and at heavy load it hovers around the mid to high 50’s which is better than my previous case. It might be due to my bottom intake fans blowing that cool air on to the GPU at a closer proximity. My AIO cooled Intel i7-8700 idles around 38c and at full load the cores never go past the mid to high 60’s. That could be cooler if I had a 240mm rad instead of a 120mm, but it will do.
Overall, the Corsair 680X is pricey, but worth the money. A lot of that cost is the three LL120 fans which normally costs $130 alone and the Commander Pro which is another $80. It’s a premium case for those who love Corsair’s suite of RGB components, but if you aren’t an RGB person than this case isn’t for you and you should get a non glass case.
